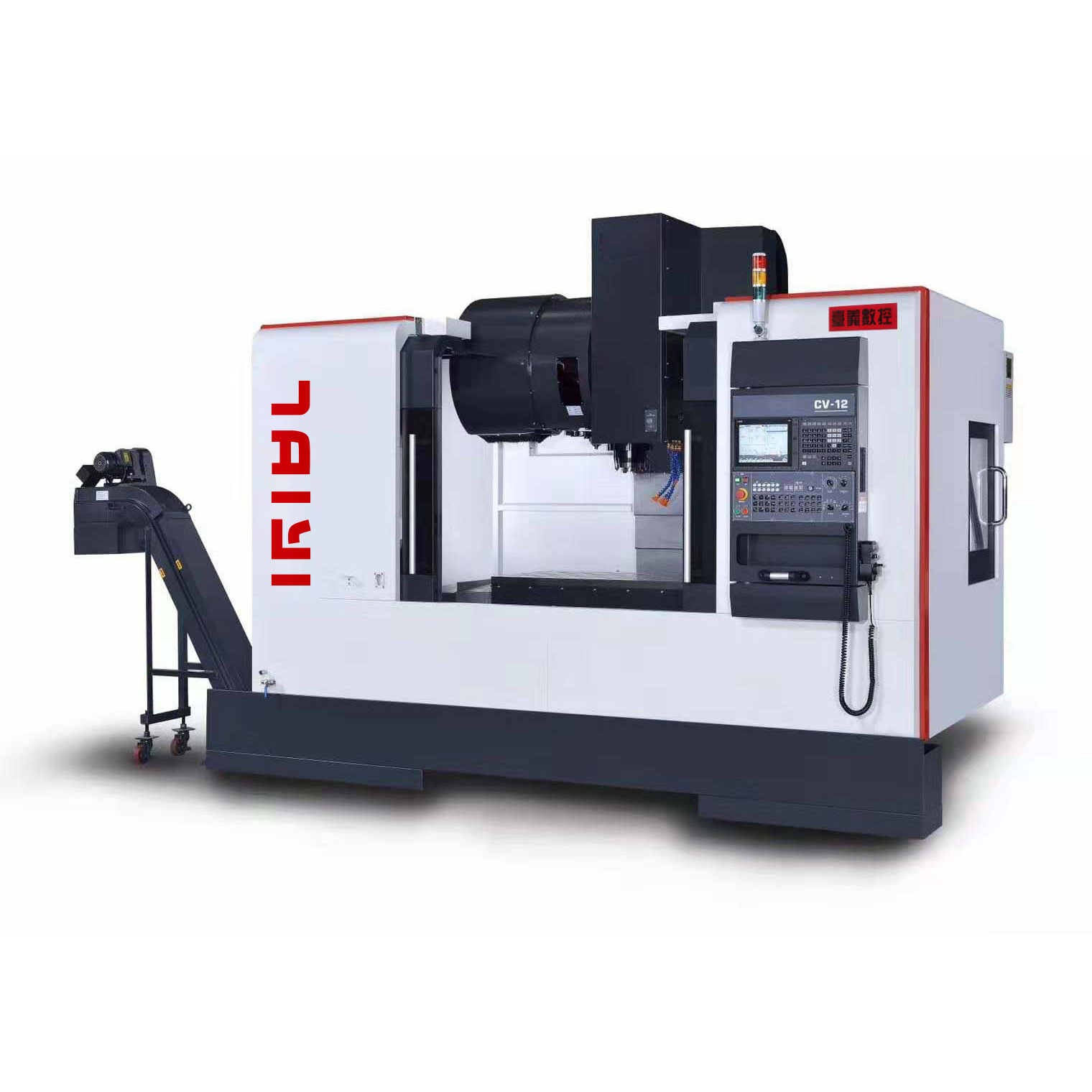

Machining center TY-650
Classification of CNC machine tools: Other CNC machine tools
Brand: Taiyi
Model: TY-650
Main motor power: 7.5(kw)
Motion mode: point-to-point linear control
Spindle speed range: 8000-12000(rpm)
Number of cutters: 24
Control mode: open-loop control
Control system: Mitsubishi
Layout form: vertical
Use: others
Applicable industries: General.
After-sales service: one-year warranty.
- Parameters
Classification of CNC machine tools: Other CNC machine tools
Brand: Taiyi
Model: TY-650
Main motor power: 7.5(kw)
Motion mode: point-to-point linear control
Spindle speed range: 8000-12000(rpm)
Number of cutters: 24
Control mode: open-loop control
Control system: Mitsubishi
Layout form: vertical
Use: others
Applicable industries: General.
After-sales service: one-year warranty.
* The three shafts are designed with oversized hard rails, which are heat-treated and finely ground.
* Three-axis adopts C3 grade precision screw, and all of them are pre-tensioned.
* Three-axis high-specification servo motor and high-rigidity coupling, no backlash problem, extremely fast acceleration response.
* Knife arm tool magazine can reduce the non-processing time of waiting for preparing knives and improve the processing efficiency (optional).
Note: This machine tool is Taiwan-funded and made in mainland China, and its main accessories are made in Taiwan Province, Japan, with excellent quality and perfect after-sale.
Main parameters of TY-650 TY-650L:
| Working table | Worktable area | mm | 800 x 426 |
| Travel and processing range | T-groove (number of grooves x width x spacing) | mm | 3 x 18 x 100 |
X-axis maximum stroke | mm | 650 | |
| Y-axis maximum stroke | mm | 450 | |
| Z-axis maximum stroke | mm | 500 | |
| Principal axis | Distance from spindle end face to workbench | mm | 150 - 650 |
| Distance from spindle center to column guide surface | mm | 525 | |
| Maximum spindle speed | rpm | 8000(12000 optional) | |
| Spindle taper | BT40 | ||
| Manufacturer | Taiwan Province of China | ||
| feed speed | Fast feed speed (X/Y/Z) | m/min | 15/15/15 25/25/25 |
| Cutting feed speed (X/Y/Z) | 0.005 - 8000 | ||
| Ball screw | Specification and grade (X/Y/Z/ grade) | 4010/C3 | |
| Manufacturer | Yintai/Shangyin | ||
| Line track | Specification and grade (X/Y/Z/ grade | - 35/45/45/P | |
| Manufacturer | Yintai/Shangyin | ||
| Electrical machinery | Spindle motor | Kw | 5.5/7.5 |
| Huada triaxial electric machinery | Kw | 2.6 1.5 | |
| Fanuc triaxial motor | Kw | 1.2 | |
| Mitsubishi triaxial motor | Kw | 2 | |
| Tool magazine | Tool magazine capacity | tool | 16/20 (选配) |
| Tool changing time | s | 2 | |
| Precision | Positioning accuracy | mm | ±0.005（300） |
| Repetitive positioning accuracy | mm | ±0.003 | |
| Other | General supply | KVA | 15 |
| Overall weight | Kg | 4500 | |
| Overall dimensions (length x width x height) | mm | 2200 x 2300 x2400 |
