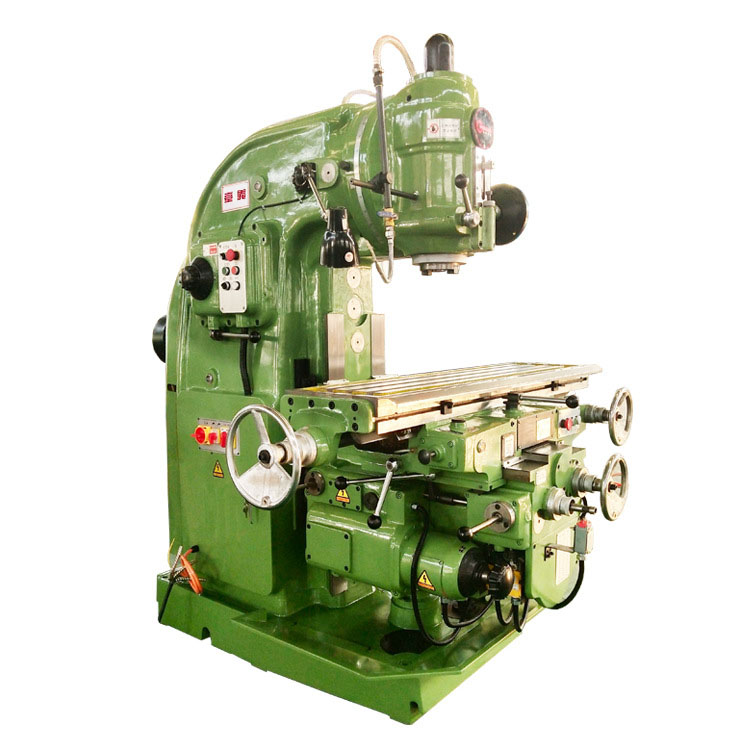

Lifting table milling machine
Type: lifting table milling machine
Item no: 11
Brand: Taiyi
Model: No.5
Weight: 1000(kg)
Main motor power: 18(kw)
Spindle speed range: 500*400(rpm)
Worktable size: 500*400(mm)
Taper of spindle taper hole: 10
Number of T-grooves: 5
Control form: program control
Layout form: vertical
Object of action: hardware
Acting object material: metal
Scope of application: universal
Applicable industry: steel structure building
Product type: brand new
Inventory: Yes
After-sales service: one-year warranty.
- Parameters
Type: lifting table milling machine
Item no: 11
Brand: Taiyi
Model: No.5
Weight: 1000(kg)
Main motor power: 18(kw)
Spindle speed range: 500*400(rpm)
Worktable size: 500*400(mm)
Taper of spindle taper hole: 10
Number of T-grooves: 5
Control form: program control
Layout form: vertical
Object of action: hardware
Acting object material: metal
Scope of application: universal
Applicable industry: steel structure building
Product type: brand new
Inventory: Yes
After-sales service: one-year warranty.
1m Hanna high strength casting, high rigidity, high precision and long service life.
2 The guide rail and workbench are quenched, tempered and hardened, and finely ground.
3 the guide rail is affixed with Turcite-B high wear-resistant sheet, which is smooth and smooth.
4 reinforced Z-direction, Y-direction square guide rail and X-direction dovetail guide rail, which has stronger bearing capacity and higher accuracy.
5 vertical steel head, strong cutting;
6. The spindle has high precision and durability, and the radial runout of the spindle cone hole is controlled to be 0.002-0.005cm. The surface of the spindle tube is hardened with high frequency, hard branded and finely ground, and the spindle tube and the shell are matched accurately. The column of the bed adopts reinforced double-rib structure, which can ensure the high rigidity of the bed and is not easy to deform.
7 NT40/5HP powerful cutting spindle can be selected.
Standard configuration of 8 No.5 milling machines: two-axis digital display ruler; X-axis cutter; Up and down automatic lifting motor; 6-inch flat nose pliers; NT40 spindle; Chuck; 58 combined pressure plates; Water tray pump; Random tools; Instructions;
